CHANNEL HEATING ELEMENTS
AREAS OF APPLICATION
The air-lab channel heating elements are used for modern home ventilation systems and act as air reheaters in the incoming air strand between the ventilating appliance and the room inlet valve.
PRODUCT DESCRIPTION

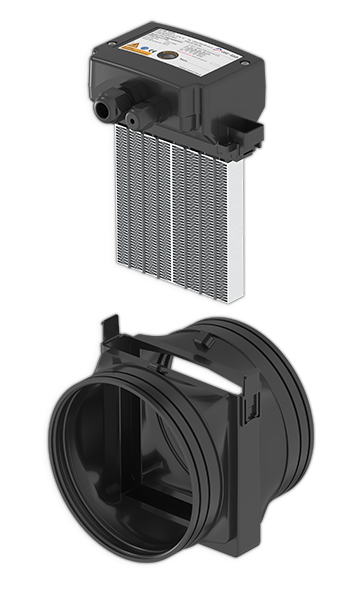

The construction of the air-lab channel heating element is extremely compact and designed for pipe installation.
It allows for easy accessibility, assembly and
dismantling during inspections.
2x cable feed incl. tension relief
i
Function display
i
Connection housing
Contains circuit board with overload protection, flow and temperature cutoff
i
PTC Register
i
Pipe casing with spiral duct connections (125mm)
i
Locking hooks (2x) for locking the PTC register
The element is unlocked using screwdrivers
i
TECHNICAL DATA
A PDF with product variations and technical data can be downloaded by clicking the following link:
