Vent heating elements are used in areas with modern home ventilation technology employing heat recycling and provide incoming air re-heating directly at the inflow opening of the respective room.

Within an HRV system, they assume the remaining heat needs for the entire heat output during the cold

periods - with individual room control.

They are used in simple ventilation systems to

avoid cold air drafts.

AREAS OF APPLICATION

Connection housing

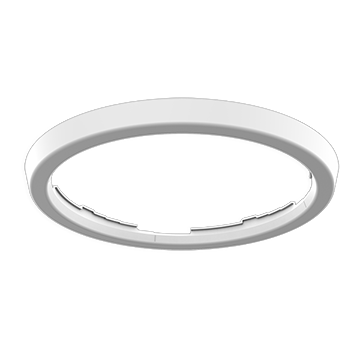

Outer collar

Heating element attachment

Annular gap restrictor

Disc attachment

Air velocity attachment

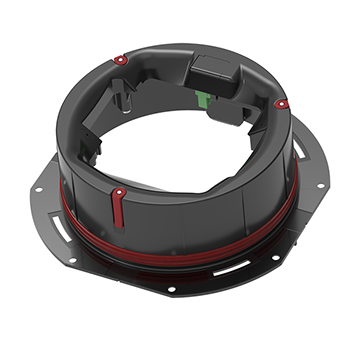

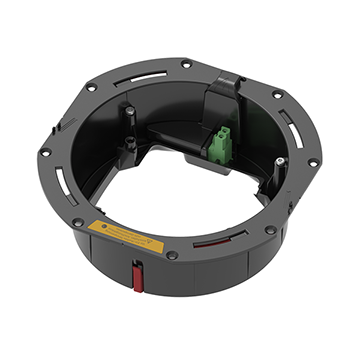

The connection housing is for the connection of air

lines and the power supply as well as for accommodating the heating element attachment.

The electrical cable line lies outside the air pipe.

It is attached in a 125mm air pipe using tension wedges.

The outer collar assumes the airflow together with the disc vent attachment and the characteristic bezel with disc vent - alternatively with air velocity attachment.

The outer collar makes flush installation possible on

the attachment levelor a shadow joint setting.

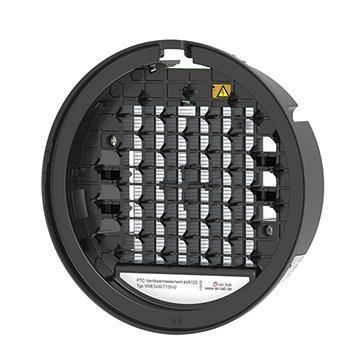

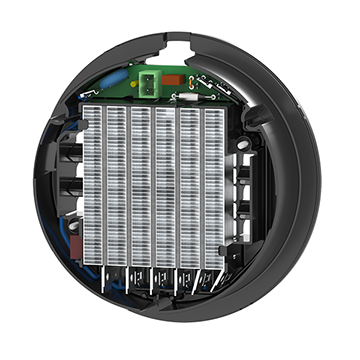

HEATING ELEMENT ATTACHMENT

By completely pushing the heating element into the connection housing a connection to the power supply is created.

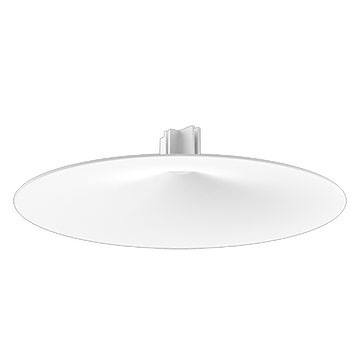

The disc vent attachment with an air outlet angle of 360° is used for ceiling mounting. The disc attachment has lock positions through which the air outlet gap can be set in 1mm graduations.

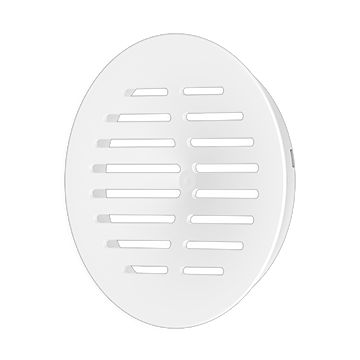

AIR VELOCITY ATTACHMENT (SLOT BEZEL)

In the case of wall mounting of the vent heating element, the velocity attachment with a slot bezel is used. A relatively large air velocity can be attained through restriction of the outlet slot.
