MODULE HEATING ELEMENTS

AREAS OF APPLICATION

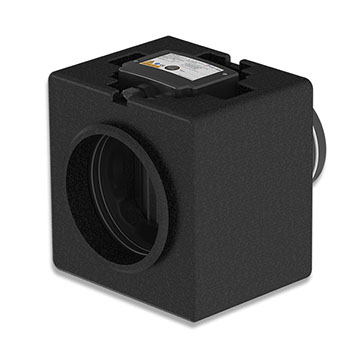

The air-lab module heating element is used for modern home ventilation systems and act as air reheaters

in the incoming air strand between the ventilating

appliance and the room inlet valve.

The construction of the air-lab module heating element is extremely compact and designed for pipe installation.

It allows for easy accessibility, assembly and dismantling during inspections.

The air-lab module heating element has the same construction as the air-lab channel heating element.

However, it also has an additional insulation.

The insulation consists of an EPP casing.

A PDF with product variations and technical data can be downloaded by clicking the following link:

PTC register with connection housing

i

Air inlet side

Construction forms:

EPP transition ring for connection of the air-lab pipe system.
s

EPP transition ring for the insertion of a pipe (100mm)

Without EPP transition ring for the insertion of a pipe (125mm)

i

Air outlet side

Construction forms:

Transition piece (temperature resistant) with foam seal for connection of a pipe (100mm)

Connection (temperature resistant) for the insertion of a pipe (125mm)

i

EPP-Gehäuse

i

● air-lab EPP connecting ring

125/100 (article no. 10220)

● air-lab EPP connecting ring air-lab

piping system (article no. 50115)
