VENT HEATING ELEMENTS CLASSIC

i

i

i

i

AREAS OF APPLICATION

Vent heating elements are used in areas with modern home ventilation technology and provide incoming

air re-heaters directly at the inflow opening of the respective room.

Within an HRV system, they assume the remaining

heat needs for the entire heat output during the cold periods - with individual room control.

They are used in simple ventilation systems

to avoid cold air drafts.

PRODUCT DESCRIPTION

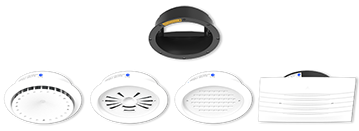

Connection housing

Heating element attachment with disc attachment

Heating element attachment with butterfly attachment

Heating element attachment with 45° slot bezel attachment

Heating element attachment with slot bezel attachment

CONNECTION HOUSING

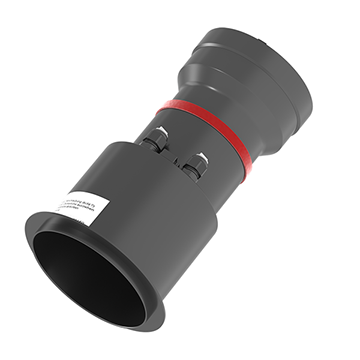

The connection housing is for connection air lines and the power supply as well as for the inclusion of the heating element housing. The element is attached using screws.

Multipoint connector for connection to the power supply

i

HEATING ELEMENT ATTACHMENT

WITH DISC ATTACHMENT

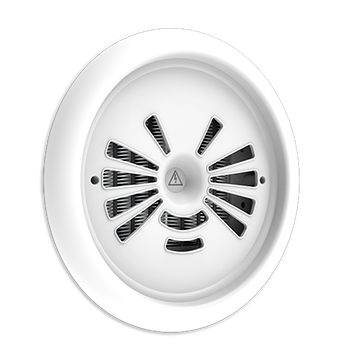

The vent heating element with disc attachment and an air outlet angle of 360° is used for installation in the ceiling. By completely pushing the heating element into the connection housing a connection to the voltage supply is created.

Contact protection screen

i

Screw (3x) for continuous setting of the air outlet opening

i

Screw (2x) for mounting in the connection housing

i

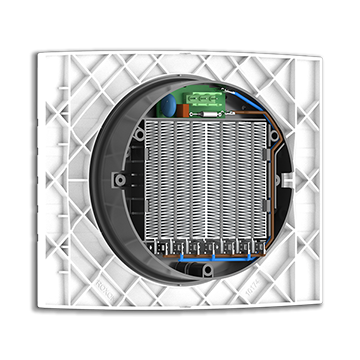

PTC Register

i

Circuit board with overload protection, flow and temperature cutoff

i

HEATING ELEMENT ATTACHMENT WITH BUTTERFLY ATTACHMEN

A butterfly attachment is used for wall mounting of the classic vent heating attachment. A relatively large air velocity can be attained through restriction of the outlet slot. By completely pushing the heating element into the connection housing a connection to the power supply is created.

Contact protection screen

i

Continuous setting of the restriction in an installed condition.

i

Screw (2x) for mounting in the connection housing

i

Circuit board with overload protection, flow and temperature cutoff

i

PTC Register

i

HEATING ELEMENT ATTACHMENT WITH

SLOT BEZEL ATTACHMENT

The vent heating element classic with the slot bezel attachment is used for wall installation. A relatively large air velocity can be attained through restriction of the outlet slot. By completely pushing the heating element into the connection housing a connection to the power supply is created.

Contact protection screen

i

Screw (2x) for mounting in the connection housing

i

Circuit board with overload protection, flow and temperature cutoff

i

PTC Register

i

HEATING ELEMENT ATTACHMENT WITH

45° SLOT BEZEL ATTACHMENT

The vent heating element classic with its 45° slot bezel attachment is used for wall installation in high rooms. A relatively large air velocity can be attained by the cross-sectional narrowing of the outlet slot, which is aligned 45° downwards. By completely pushing the heating element into the connection housing a connection to the power supply is created.
